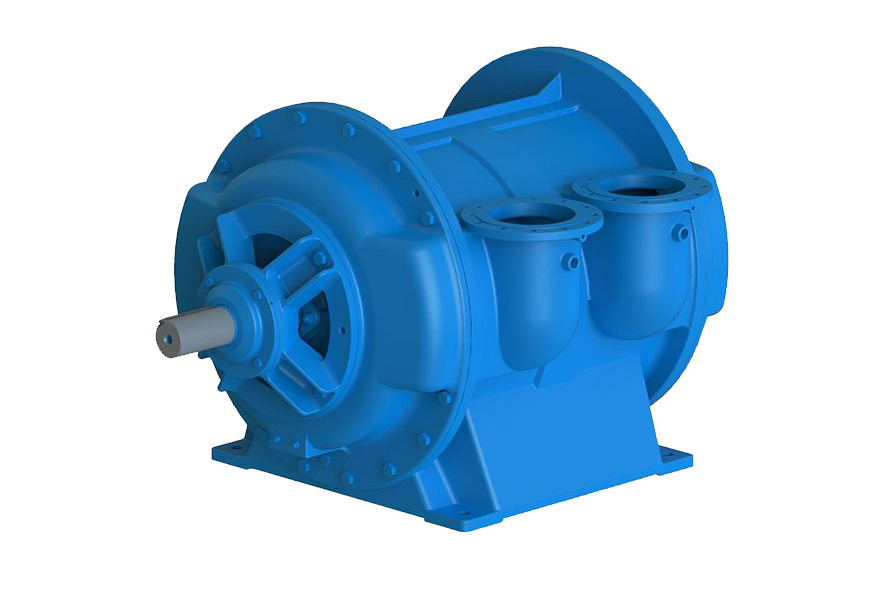

The liquid ring vacuum pumps ALBV/2000
DESCRIPTION: The liquid ring vacuum pumps ALBV/2000 grant capacities from 2000 up to 7500 m3/h.
MAIN USES:
- Papermill
- Petrochemical
- Regenerated leather
MODELS: The pumps ALBV/2000 are available:
- In standard construction
- In special execution (AL/2000-2) for high vacuum degrees
CONSTRUCTION: The ALBV/2000 pump are built with two vertical suction boxes to allow to have two pumps in one, each of one working with 50% of the total capacity and with independent and differential vacuum degrees. The single stage liquid ring vacuum pumps are studied to allow to the user to have a very low energy consumption compared with a continuous working in hard conditions. The reliability and the efficiency, with low consumptions, are granted from the presence of distributors having wide crosses.
MATERIALS: The standard construction materials is cast iron.
Other solutions are forecasted as follows:
- Stainless steel RV316
- Ceramic composite RC
The sealing is granted from stuffing box in the standard execution; on request, the sealing is done through mechanical seals
