Mechanical Flotation Machines
Mechanical flotation machines are designed for flotation of various minerals in a wide range of sizes, but are preferred for coarse feed.

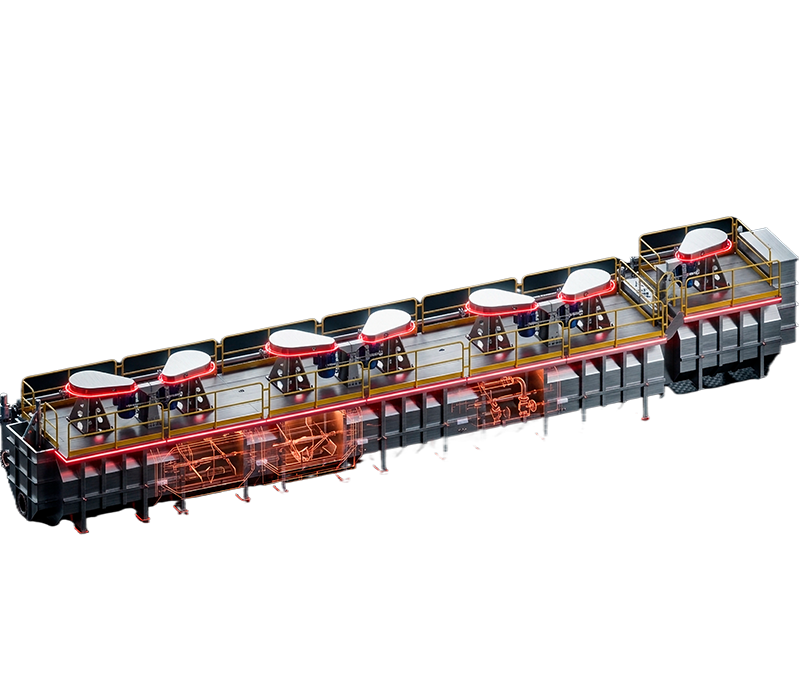

NPO Passat produces chambers of mechanical flotation machines with the volume of 7.5 and 16 m3. Some flotation machine chambers are arranged in series in a row, forming a flotation machine with the required number of chambers for the process.
|
Technical characteristics |
FM-7,5 |
FM16 | |
|
Chamber volume, m3 |
7.5 | 16 | |
|
Number of chambers, pcs |
Determined on the basis of requirements of a customer |
||
|
Main construction material |
Steel 12Х18Н10Т (selected depending on operating conditions) |
||
|
Foam removal device |
If necessary |
||
| Impeller motor, kW (approximate) | 18,5 | 45 | |
|
Overall dimensions (approximate): |
|||
|
Length |
2400 | 3400 | |
|
Width |
3500 | 4300 | |
|
Height |
3200 | 4400 | |
